Three years into my career, I spent two weeks debugging why our API randomly returned 502s. The logs were clean. The application was fine. Everything pointed to nothing.

Then a network engineer walked by and asked, "Did you check if the load balancer's keepalive timeout matches your application server's?"

That's when it clicked. I'd been debugging at the wrong layer.

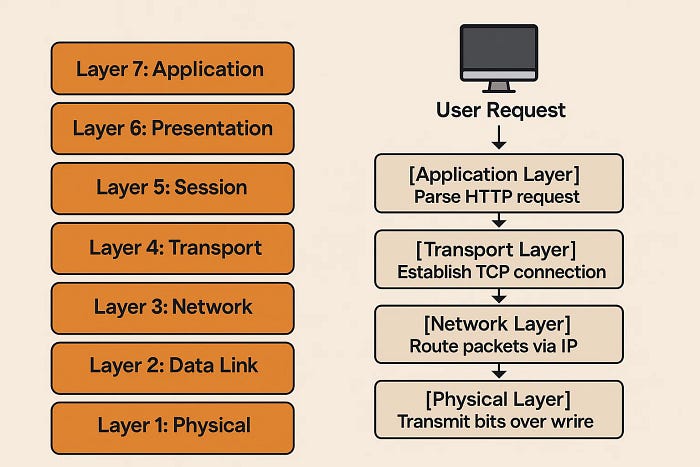

The Seven Layers That Actually Matter

The OSI model isn't some academic exercise you memorize for interviews. It's a mental framework that prevents you from wasting days looking in the wrong place.

Layer 7: Application    [HTTP, DNS, SSH]
Layer 6: Presentation   [TLS, Compression]
Layer 5: Session        [Auth, Connections]
Layer 4: Transport      [TCP, UDP]
Layer 3: Network        [IP, Routing]
Layer 2: Data Link      [Ethernet, MAC]
Layer 1: Physical       [Cables, Signals]

Here's what actually happens when you hit an API:

User Request
    |
    v
[Application Layer] - Parse HTTP request
    |
    v
[Transport Layer]   - Establish TCP connection
    |
    v
[Network Layer]     - Route packets via IP
    |
    v
[Data Link Layer]   - Frame data for physical transmission
    |
    v
[Physical Layer]    - Transmit bits over wire

Layer 7: Application Layer

This is where most developers live. HTTP status codes, API responses, database queries. But here's what they don't tell you: most "application bugs" aren't application bugs.

Real Bug: Users complained our upload endpoint was "broken." The API returned 200 OK, but files weren't appearing.

// The problematic code
func uploadHandler(w http.ResponseWriter, r *http.Request) {
    file, _, err := r.FormFile("file")
    if err != nil {
        http.Error(w, err.Error(), http.StatusBadRequest)
        return
    }
    defer file.Close()

    // Processing happens here
    w.WriteHeader(http.StatusOK)
    json.NewEncoder(w).Encode(map[string]string{"status": "success"})
}

The issue? Large files (over 50MB) were being silently rejected by nginx before reaching our application. The 200 was coming from a different request that succeeded.

The fix was three layers down:

# /etc/nginx/nginx.conf
client_max_body_size 100M;

Layer 4: Transport Layer

TCP versus UDP. Connection timeouts. Port exhaustion. This layer has ended more careers than I care to count.

Classic scenario: Application becomes unresponsive under load, but CPU and memory look fine.

# Check current connections
ss -s

# Output showing the problem
TCP: 28547 (estab 1034, closed 27500, orphaned 12, timewait 27488)

27,488 connections in TIME_WAIT state. The kernel was out of available ports.

// Before (bad) - Creates new connection every time
func fetchUsers(userIDs []string) error {
    for _, id := range userIDs {
        resp, err := http.Get(fmt.Sprintf("https://api.example.com/user/%s", id))
        if err != nil {
            return err
        }
        defer resp.Body.Close()
        // Process response
    }
    return nil
}

// After (good) - Reuses connections
var client = &http.Client{
    Timeout: 10 * time.Second,
    Transport: &http.Transport{
        MaxIdleConns:        100,
        MaxIdleConnsPerHost: 10,
        IdleConnTimeout:     90 * time.Second,
    },
}

func fetchUsers(userIDs []string) error {
    for _, id := range userIDs {
        resp, err := client.Get(fmt.Sprintf("https://api.example.com/user/%s", id))
        if err != nil {
            return err
        }
        defer resp.Body.Close()
        // Process response
    }
    return nil
}

Benchmark: Connection pooling reduced request time from 340ms to 12ms under load (1000 requests).

Layer 3: Network Layer

IP routing, subnet masks, DNS resolution. When your service can't reach another service, this is where you look.

# Trace the actual route packets take
traceroute api.internal.company.com

# Check if DNS is lying to you
nslookup api.internal.company.com

War story: Database connections were timing out intermittently. The DB was healthy. The application was healthy. The network team insisted everything was fine.

# This revealed the truth
mtr --report --report-cycles 100 db.internal.company.com

# Packet loss at hop 4: 23%

A misconfigured router between two data centers was dropping packets. The application assumed the problem was the database and kept retrying, making everything worse.

Layer 2: Data Link Layer

MAC addresses, switches, VLANs. You probably won't debug here often, but when you do, nothing else matters.

In cloud environments, this manifests as "network interface saturation." Your EC2 instance has a hard limit on packets per second based on instance type.

# Check interface stats
ip -s link show eth0

# Look for TX/RX errors or drops

The Debugging Process That Actually Works

Stop guessing. Start layering.

1. Application logs clean?        -> Go down one layer
2. TCP connections normal?         -> Go down one layer
3. Can you ping the destination?   -> Go down one layer
4. Is the cable plugged in?        -> Go outside and touch grass

Real debugging session:

# Layer 7: Application
curl https://api.example.com/health
# Returns 503

# Layer 4: Transport
telnet api.example.com 443
# Connection refused

# Layer 3: Network
ping api.example.com
# Host unreachable

# Layer 2: (Skipped in cloud)
# Resolution: DNS was returning wrong IP
nslookup api.example.com

# Pointed to decommissioned server

The Pattern You'll See Everywhere

After you understand the layers, you start seeing them in everything:

Kubernetes networking:

  • Pod to Pod: Layer 3 (IP)
  • Service to Pod: Layer 4 (TCP/UDP + ports)
  • Ingress: Layer 7 (HTTP routing)

Load balancer issues:

  • Connection refused: Layer 4 (wrong port/protocol)
  • 502 Bad Gateway: Layer 7 (upstream timeout)
  • Connection timeout: Layer 3 (routing/firewall)

What Changed For Me

I stopped saying "the network is broken" and started asking "which layer is broken?" I stopped debugging by intuition and started debugging by elimination.

That 502 bug from the beginning? The load balancer (Layer 7) had a 60-second keepalive. The application server (Layer 4) had 65 seconds. When the LB closed the connection, the app still thought it was open. Next request hit a dead socket.

// The fix
server := &http.Server{
    Addr:              ":8080",
    Handler:           router,
    ReadTimeout:       15 * time.Second,
    WriteTimeout:      15 * time.Second,
    IdleTimeout:       50 * time.Second, // Less than LB's 60s
    ReadHeaderTimeout: 5 * time.Second,
}

The seven layers aren't about memorizing where SMTP belongs. They're about knowing where to look when everything breaks. And everything always breaks.

Once you see through the layers, debugging stops being archaeology and starts being engineering.
